Globe Valve
We synthesize a wide range of Globe Valves which includes seal globe valves, gate globe
valves and cast iron globe valves. These globe valves are made from the finest quality of
metal and raw materials. We hold a state of the art infrastructure, where we have all the
latest machineries and tools. All are team is specially trained. We have set our own quality
control team. The designs are unique and efficient. It’s been more than a decade that we are
consistently serving our clients. With all this we are the paramount cast iron globe valves
manufacturer and supplier from India.

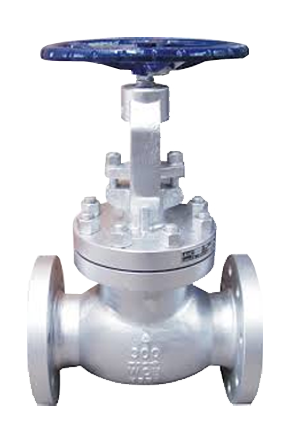

Safecon Globe Valves are O.S. & Y Type i.e. Outside screw & yoke, Bolted bonnet, &
Rising stem. Globe valves are used where throttling and both throttling and shut-off is
required. They can also be used for on-off service, but because of high pressure drop, this is
generally confined to applications where the valve is normally closed and drop is not
important when the valve is open. Normally globe valves are installed with flow under the
disc, but under certain conditions flow over the disc may have the advantages.
Safecon can also supply Angle Valves, “Y” Type Globe Valves and Globe Valves as S.D.NR
(screw-down non-return) which in effect converts it into two valves – stop valve when closed
or a check valve when open.
Design Features :
- Streamlined shaped body for smooth flow of the working fluid for minimum pressure Drop.
- Back seating arrangement permits the replacement of packings while the valve is in full
open position
|
| |
|
Standards Applicable :
- Design Standard : BS 1873
- Testing Standard : API 598 / BS EN 12266 -1
- Face to Face : ASME B 16.10
End Connection :
- Flanged End : ASME B 16.5
- Butt Weld End : ASME B 16.25
- Pressure Temperature : ASME B 16.34
Valve Operation :
Operator : Hand wheel
Size Range :
- 2" - 10" – Class 150, 300
- 2" - 6" – Class 600
- 2" - 4" – Class 900, 1500
Operator : Gear Operator
Size Range :
- 12" & above – Class 150, 300
- 8" & above – Class 600
- 6" & above – Class 900 & 1500
|
|
Material Structure :
- End Connection : Flanged end raised face, Butt weld end, RTJ, etc.
- Operation : Hand wheel, Gear operator, Electrical Actuator, Pneumatic, Hydraulic
- Shell : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C,
CN7M, CD4MCu, Hastalloy, Inconel, Duplex Stainless Steel.
- Trim : 13% Cr. Steel, 304, 304L, 316, 316L, 321, 347, Monel, Duplex Stainless steel.
|
|
|
|
|
| |
|
| |
|
